A |
| 技術參數Specifications 使用線數(Hole count): 12 溫度范圍（Temperature range): -25℃～85℃ 額定電壓（Rated voltage):300V. AC/DC 額定電流（Rated current): 5A |
B |
|
端子 Terminal
型號 Type | 圖號 Pic | 壓線范圍 Wire Range | 厚度 Thickness | 材質 Material | 尺寸 Dimension (mm) | 對照表 Comparison No. | 備注 Remark | |||
AWG# | mm2 | L | W | E | ||||||
DJ612-2.3A | A | 18~16 | 0.7~1.2 | 0.3 | 黃銅 | 23.8 | 2.2 | 7.0 | 插頭 | |

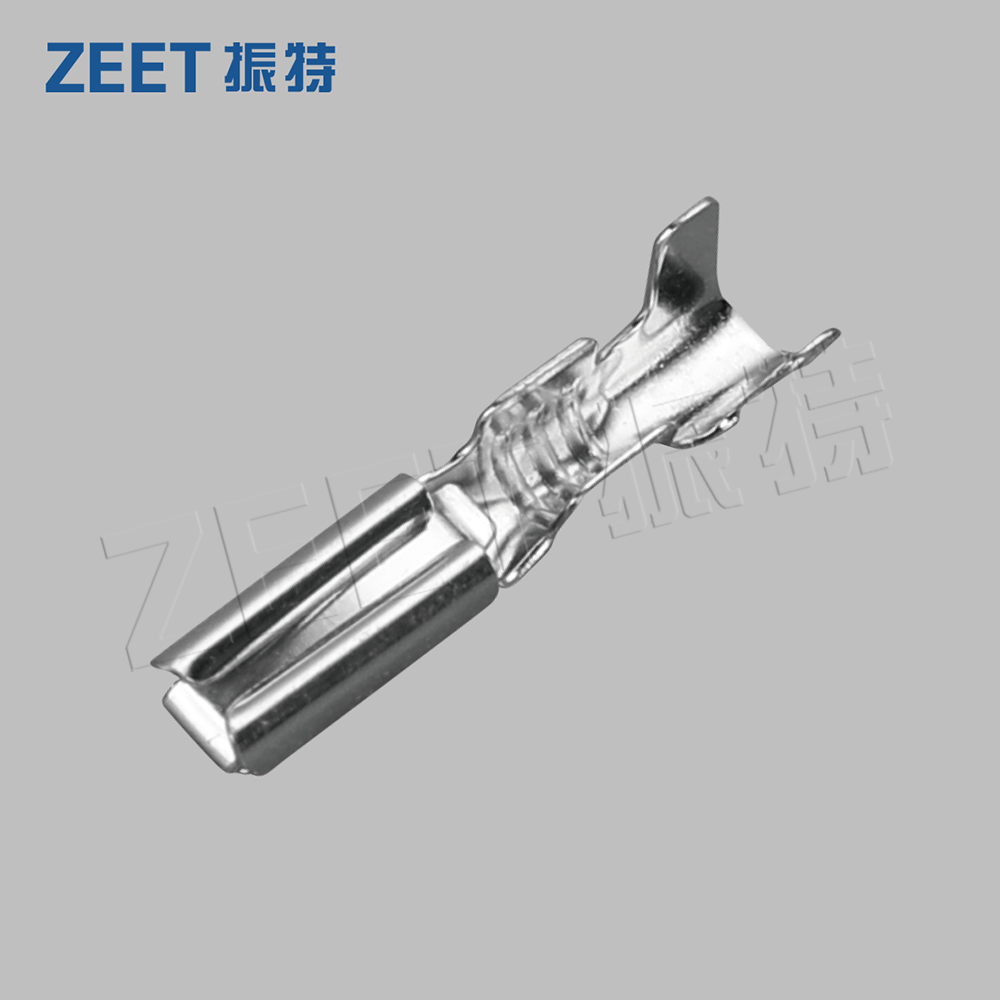

DJ622-G2.3A | B | 18~16 | 0.7~1.2 | 0.25 | 磷銅 | 16.3 | 3.0 | 7.0 | 插座 | |
塑料件Plastic parts
線數 Hole count | 插頭 Plug for male terminal | 插座 Receptacle for female terminal |
12 | DJ7125Y-2.3-11 | DJ7125Y-2.3-21
|
使用線數(Hole count): 12
溫度范圍（Temperature range): -25℃～85℃
額定電壓（Rated voltage):300V. AC/DC
額定電流（Rated current): 5A
